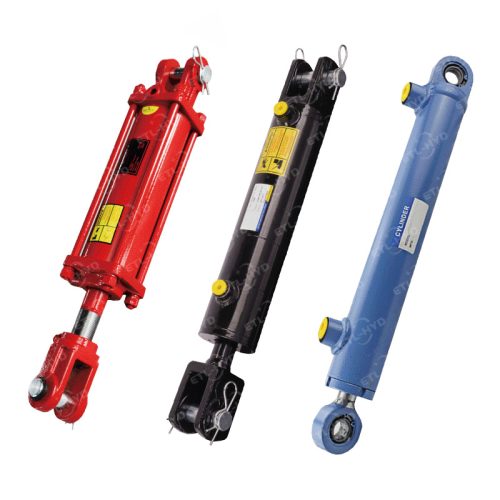

Eternal Hydraulic Standard Cylinders
Eternal Hydraulic produce about120.000 cylinders peryear and the whole process develops inour factory: cutting of raw materialsturning and milling machining, compo-nents and accessories welding, cylin-ders mounting and final testing! All the above steps are made with latestgeneration CNC machines, weldingrobotized stations and specially madeequipment.
DESIGN
Our specialized staff is at your disposalfor technical consultancy relating yourproject and the best type of materials touse based on your application. Wemostly work“on drawing”, preparingpersonalized projectsaccordingtocustomer needs.
Once the project is defined, we produceour technical drawing by CAD 2D-3Dsystems and supply it to our customerfor approval.
RAW MATERIALS
An accurate raw materials and sealsselection brings to save costs and allowto produce high quality and powerfulcylinders. For that reason, in the materials choice we consider the applicationfield of our cylinder and the environmentwhere it will work.
Specifically for chromed bars and tubeswe work only with producers or reliablesuppliers.
CONTROL
Each step of production is controlled and its progress is monitored with “production tag” filled up by theoperator at the end of each process.All cylinders are marked with product code and number of produc.tion order, in order to have a full traceability
All cylinders are controlled, during theassembling for possible defects of the components used and tested with the “methodof variation of pneumatic pressure” forpossible leakage; by sampling, or oncustomer request, cylinders are hydraulically tested on pressure.
Model Code
(4″ Bore= 3000 PSI, 5″ Bore= 2500 PSI)
Intended Use: Double-acting applications
Tube: Precision honed steel
Rod: Hard chrome plated
Piston: Ductile iron
Gland: Ductile iron, drilled oil passages
End Mounts: Ductile iron female clevises with pins and clips included
Seal Brand: Hallite
WCC WELDED CYLINDER WITH CLEVIS MOUNTES (4″ Bore= 3000 PSI, 5″ Bore= 2500 PSI)
Intended Use:Double-acting applications
Tube:High tensile cold drawn tube, precision honed
Piston&Gland: Ductile iron
Rod:High tensile, hard chrome plated rod
End Mounts: Cast female clevises with pins and clips included Pin and Pin
Clip: High tensile zinc-plated steel
Seal Brand:Hallite
WCS WELDED CYLINDERS WITH SWIVAL BALL MOUNTES (4″ Bore= 3000 PSI, 5″ Bore= 2500 PSI)
WCT WELDED CYLINDERS WITH CROSS TUBE MOUNTES (4″ Bore= 3000 PSI, 5″ Bore= 2500 PSI)
WCS WELDED CYLINDERS WITH SWIVEL BALL MOUNTES
WCC WELDED CYLINDERS WITH CLEVIES MOUNTES
→Hydraulic Cylinders For Agriculture PDF1
